Steel Structure Chicken House

PRODUCT PARAMETER
Place of Origin:	Henan, China (Mainland)
Standard:	GB Standard
Certificates:	CE, ISO9001
Grade:	Q235/Q355
Brand Name:	Canglong Group
Type:	Light Steel Structure
Surface Treatment:	Painted & Hot dip galvanized
Columns and Beams:	H-section Steel
Purlin:	C.Z Shape Steel Channel
Roof and Wall Panel:	Sandwich Panel, Color Steel Plate

INQUIRE NOW

BUY NOW

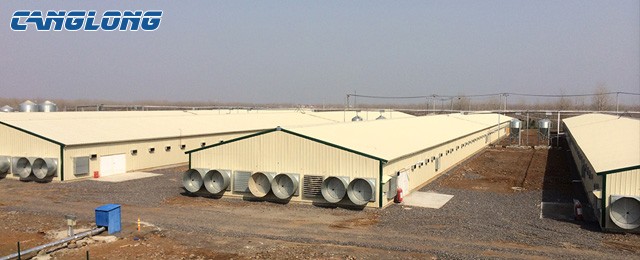

The size of the chicken house:

The size of the chicken house is determined by the size and density of the house. Generally, the breeding density of broiler chickens from breeders to large chickens can be 3-4/m2. If you raise the scale of 5,000/shed, then the available area of the house is more than 1,000 square meters.

Choice of chicken house equipment:

Heating and insulation equipment:

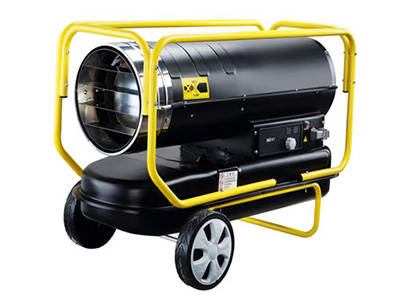

Broilers in raising chicks or broiler stage, the temperature requirements are higher, so the meat chicken coop should be heated insulation equipment. The heating and heat preservation equipment of meat chicken house mainly includes electric heat preservation umbrella, coal stove, infrared lamp or electric blanket heat preservation, fire kang and flue heat preservation.

Broiler drinking equipment:

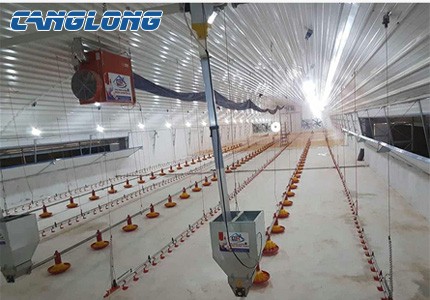

There are sinks, tower vacuum drinkers, hanging tray automatic drinking fountains, nipple drinkers and cup drinkers.
Broiler feeding equipment:

It is divided into two categories: ordinary feeding equipment and mechanical feeding equipment. There are long troughs, buckets, and food trays.
Broiler house ventilation and cooling equipment:

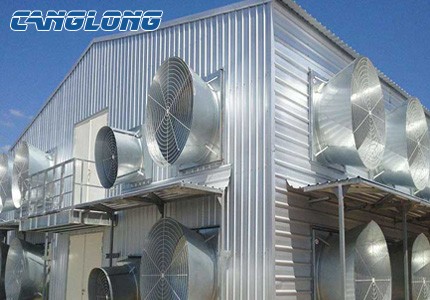

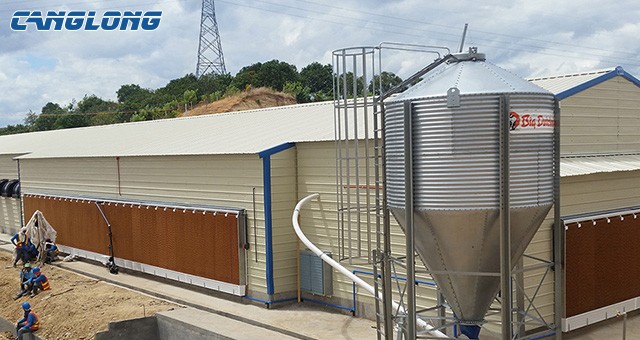

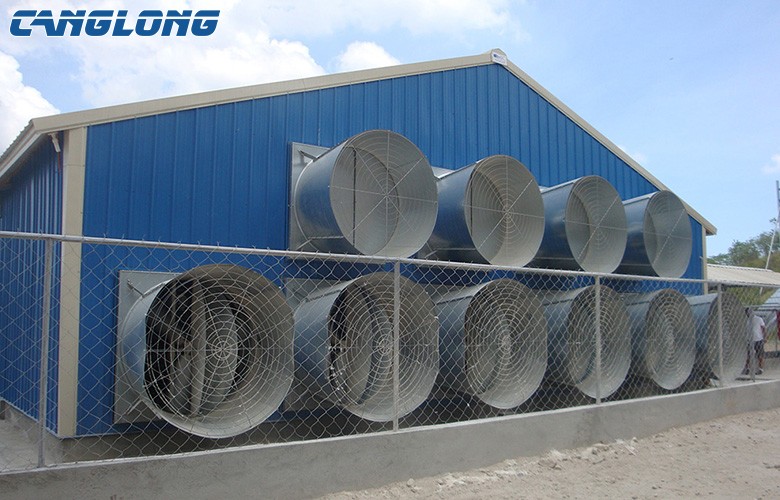

The density of broiler chickens is high, especially in the hot summer, and it is necessary to strengthen ventilation and heatstroke prevention. Currently, the commonly used ventilation and cooling equipments are: fans, wet curtains - fan cooling equipment, automatic spray cooling equipment.

Selection of building materials:

The building materials required for broiler chicken houses can be roughly divided into five aspects, one is the chicken house structure, the second is the house roof/wall surface,the third is the chicken house floor,the fourth is the chicken house door and window.

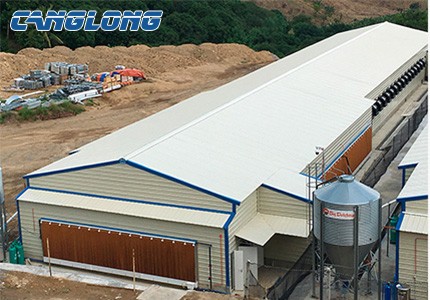

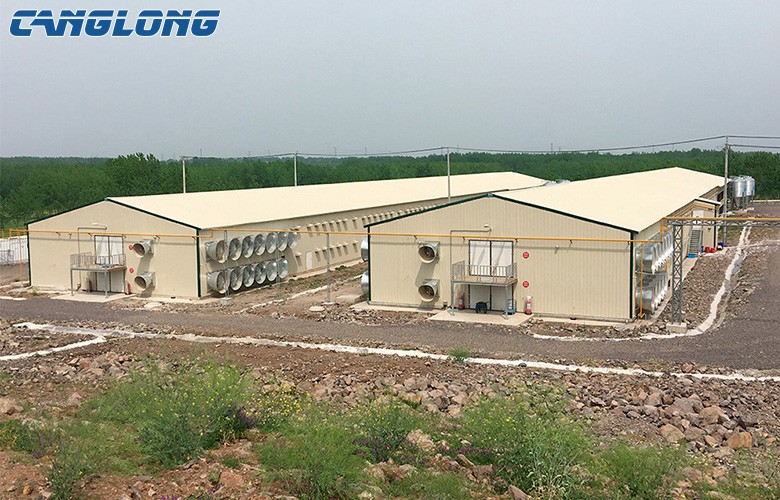

First, the chicken house structure (light steel structure)

The chicken house is made of galvanized square tube or galvanized round tube. The steel tube is fixed on the ground as a pillar. Each steel pipe is 3-5 meters apart. The roof is also framed by steel pipe and has a herringbone shape. Or round roof, span depends on the specific situation. This mode is simple to install, strong and easy to disassemble.

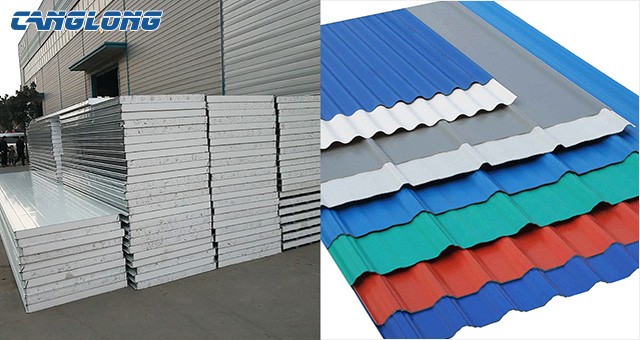

Second, chicken house roof / wall material (color steel sheet / sandwich panel)

The roof/wall material of the chicken house is usually color steel sheets or sandwich panels. The thickness of the color steel sheet is 0.3mm-0.6mm. The thickness of the sandwich panel can be selected from 50mm-200mm. The chicken houses built with color steel tile and composite board have the characteristics of beautiful appearance, convenient and safe, and can be reused.
