Philippine steel structure project
Project location: Philippines
Project Name: steel structure
Project purpose: Steel structure warehouse

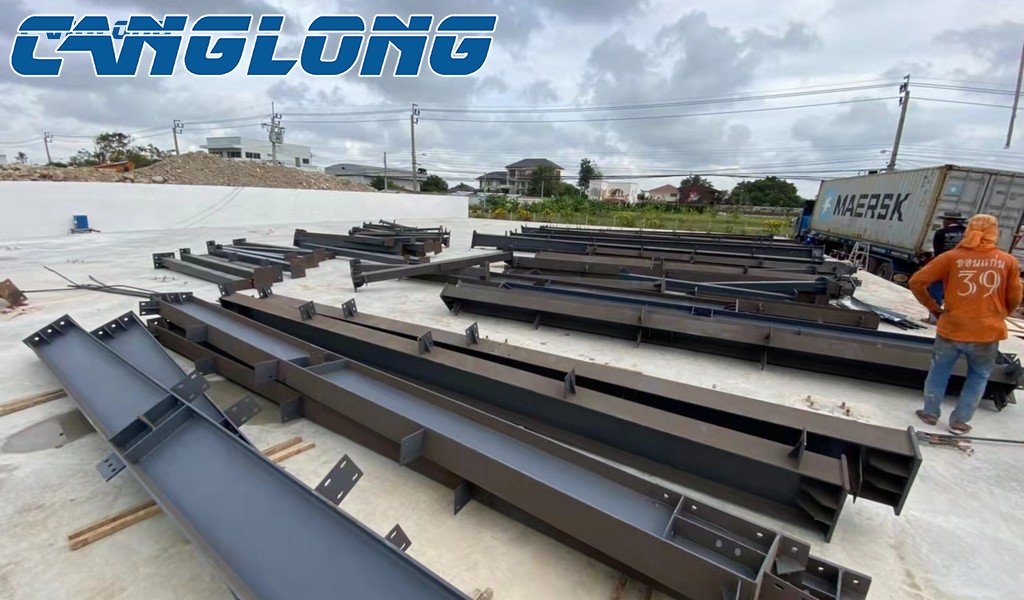

The project is located in the Philippines. The customer purchased a batch of steel members and EPS composite plates for the construction of a steel structure warehouse with a size of 48.22m long * 18.8m wide * 5.82m high. The whole warehouse has 907m ²。 The main beam and column purchased by the customer are welded H-section steel, made of q355b, shot blasting treatment, cleaning: - sa-2.5, the horizontal support adopts round steel with diameter of 20mm, the support between columns adopts round pipe with diameter of 20mm, the tie rod adopts round pipe with diameter of 89 * 4mm, the support adopts round pipe with diameter of 12mm, the diagonal support adopts L50 angle steel, the roof and wall purlin adopts q235b-gb galvanized strip hole, and the canopy has two sizes, They are 18 * 2.6m and 9.5 * 2m respectively. The scaffold adopts square pipe, and the size of EPS composite plate is 950mm wide and 50mm thick. At present, the whole project is under installation. The customer feedback that the communication with our engineers in the installation process is very smooth, which can quickly solve any problems in the installation process. The product quality is also very good, the installation is convenient, and the price is also very favorable. I affirm the specialty of our company.
